Product Name

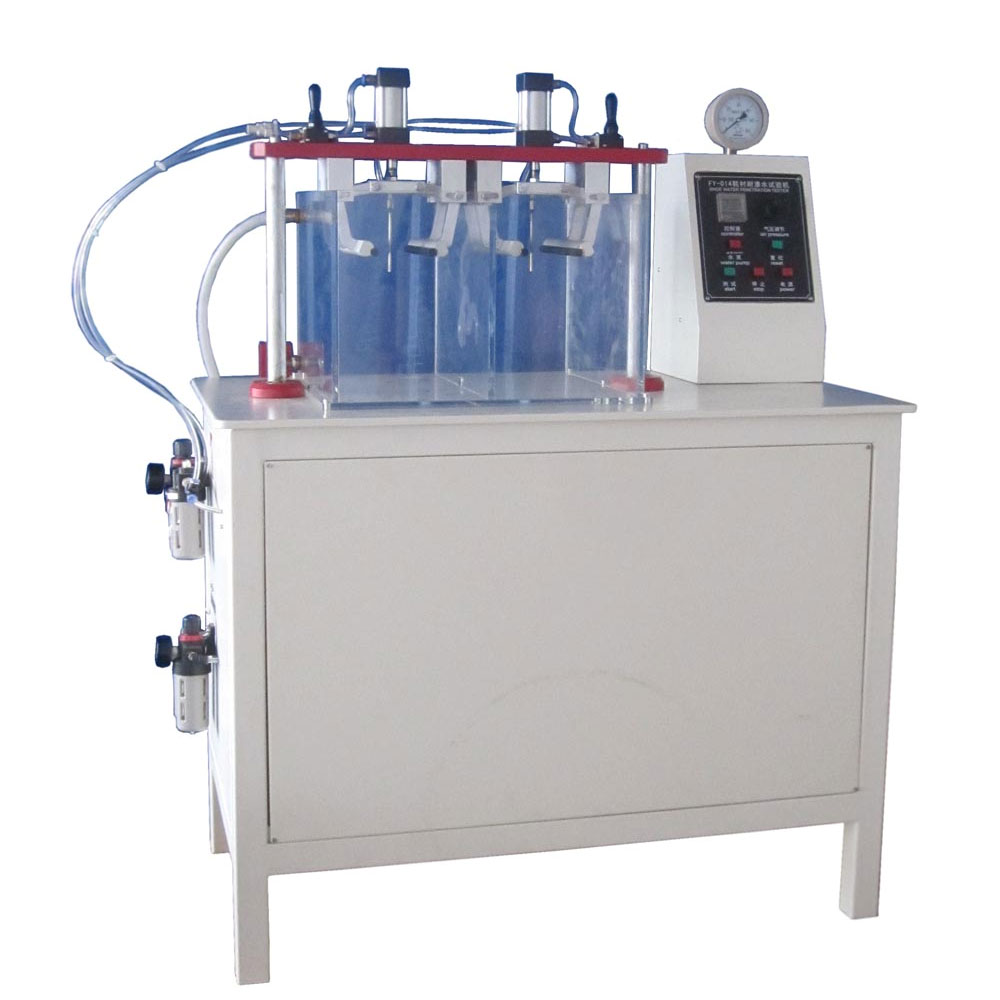

Shoe water penetration tester
Model No.
DW9510
DW9510 Shoe water penetration tester is used to test waterproof performance of rubber face and shoes lining of rubber shoes. The pneumatic clamps seal the specimen and to clamp the specimen into the water, while certain air pressure filled into the samples, if the sample seepage, it will immediately generate bubbles. When reach the set time, the clamp with the sample automatically lift out of the water.
DW9510 Shoe water penetration tester is used to test waterproof performance of rubber face and shoes lining of rubber shoes. The pneumatic clamps seal the specimen and to clamp the specimen into the water, while certain air pressure filled into the samples, if the sample seepage, it will immediately generate bubbles. When reach the set time, the clamp with the sample automatically lift out of the water.
Note: this shoe water penetration tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
| Number of working position | 2 |
| Range of air pressure | 0～50kPa (adjustable) |
| Timer range | 0~999 s |
| Weight | 128kg |
| Dimension | 1050×560×1500mm (L×W×H) |
| Number of working position | 2 |
| Range of air pressure | 0～50kPa (adjustable) |
| Timer range | 0~999 s |
| Weight | 128kg |
| Dimension | 1050×560×1500mm (L×W×H) |
