Product Name

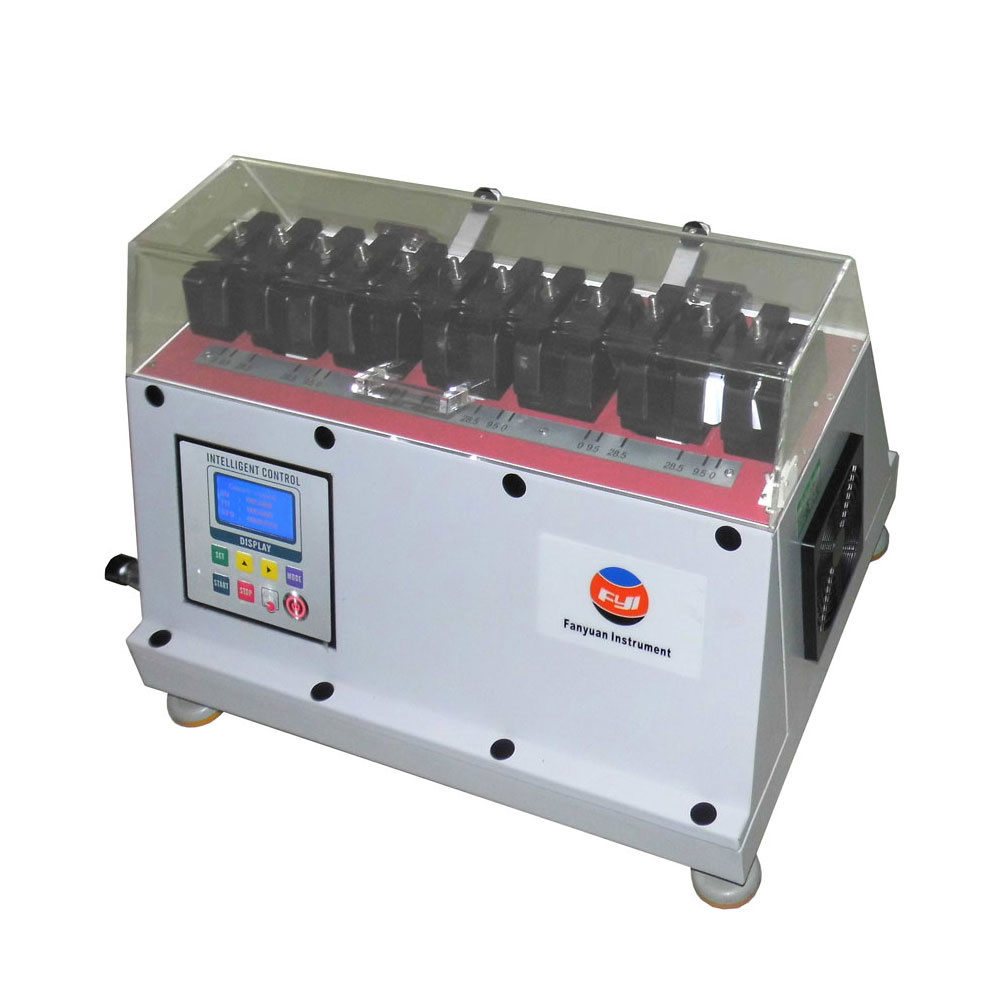

Upper material flexing tester
Model No.
DW9410
DW9410 Upper material flexing tester is used to assess the tendency of all type of shoe upper materials such as leather, poromeric, plastic-coated fabric and upholstery coverings to crack or break as a result of flexing in wear.
Double crease similar to those formed in the upper of a boot during wear are generated repeatedly in specimens of polyurethane upper material by means of a suitable apparatus until cracking of the polyurethane upper material is observed or until the test piece survive a specified number of flexure cycles.
DW9410 Upper material flexing tester is used to assess the tendency of all type of shoe upper materials such as leather, poromeric, plastic-coated fabric and upholstery coverings to crack or break as a result of flexing in wear.
Double crease similar to those formed in the upper of a boot during wear are generated repeatedly in specimens of polyurethane upper material by means of a suitable apparatus until cracking of the polyurethane upper material is observed or until the test piece survive a specified number of flexure cycles.
STANDARDS | ISO 5423 | SATRA PM25 |
Note: this upper material flexing tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
| Stroke | 19±0.5mm |
| Speed | 300±30 cpm |
| Test sheet | 64×64mm |
| Working position | 6 |
| Fixture | 40°V-shape 6.4mm(R) |
| Stroke | 19±0.5mm |
| Speed | 300±30 cpm |
| Test sheet | 64×64mm |
| Working position | 6 |
| Fixture | 40°V-shape 6.4mm(R) |
