Product Name

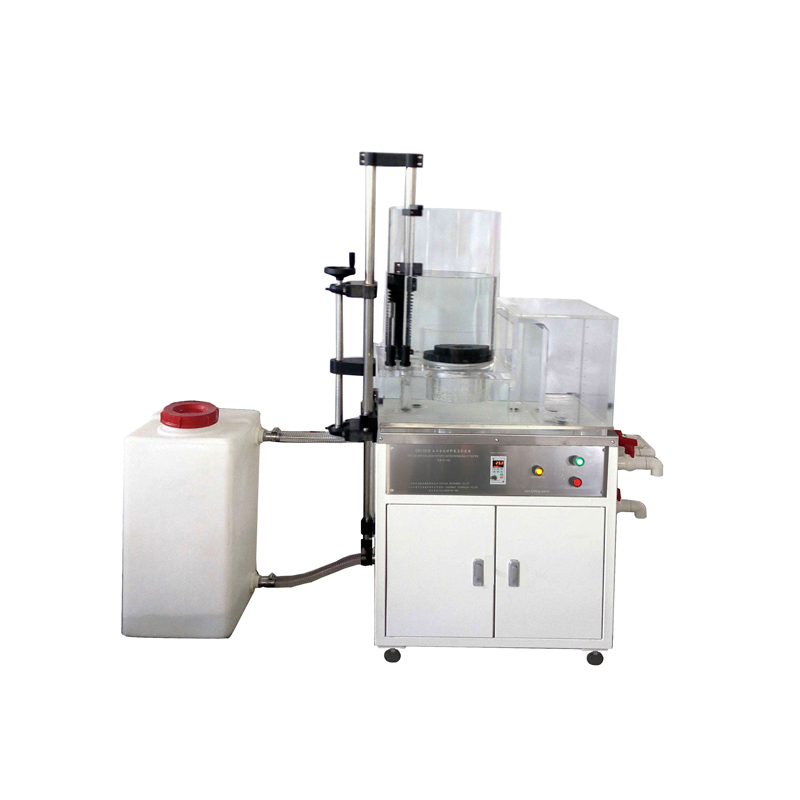

Vertical Water Permeability Tester
Model No.
DW1320
DW1320 Vertical Water Permeability Test Apparatus for Geotextile is used to determine the water permeability/hydraulic conductivity of a single layer of geotextile or geotextile-related product normal to the plane, without load, by the constant head method.
DW1320 Vertical Water Permeability Test Apparatus for Geotextile is used to determine the water permeability/hydraulic conductivity of a single layer of geotextile or geotextile-related product normal to the plane, without load, by the constant head method.
STANDARDS | ISO11058:1999 | ASTM D4491-2004 | GB/T 15789-2005 |
Note: this vertical water permeability tester for geotextile can conform to but not limit to all the standards above, for more standards conformance, please contact us.
| Inner diameter of clamps | Ф52±1mm, Ф100±1mm |
| Water head | adjustable 0~300mm |
| Resolution of water head | 1mm |
| Dimensions | 1520*570*1700mm |
| Weight | 170kg |
| Inner diameter of clamps | Ф52±1mm, Ф100±1mm |
| Water head | adjustable 0~300mm |
| Resolution of water head | 1mm |
| Dimensions | 1520*570*1700mm |
| Weight | 170kg |
